There are many types of heat treatment processes, including quenching, tempering, annealing, normalizing, carburizing, nitriding, etc. Each process has different requirements for furnace temperature, atmosphere composition, time control, etc. Therefore, different process types have different requirements for temperature resistance, corrosion resistance and thermal stability of accessory materials.
For example, in the carburizing process, accessories need to be in a high temperature and carbon-rich environment for a long time, and the ability to resist carburization is the key; while in vacuum heat treatment or nitriding, the material should have stronger oxidation resistance and dimensional stability. High chromium-nickel alloys, Fe-Cr-Ni series heat-resistant steels, etc. are used more in these scenarios, and the material selection should be as close to the specific process conditions as possible.
In heat treatment furnaces, common accessories include brackets, hangers, furnace bottom plates, fan impellers, radiation tubes, sheaths, muffle tanks, etc. These structural accessories not only need to withstand high temperature environments, but also need to repeatedly bear the weight of workpieces, and withstand thermal expansion and thermal stress shocks.

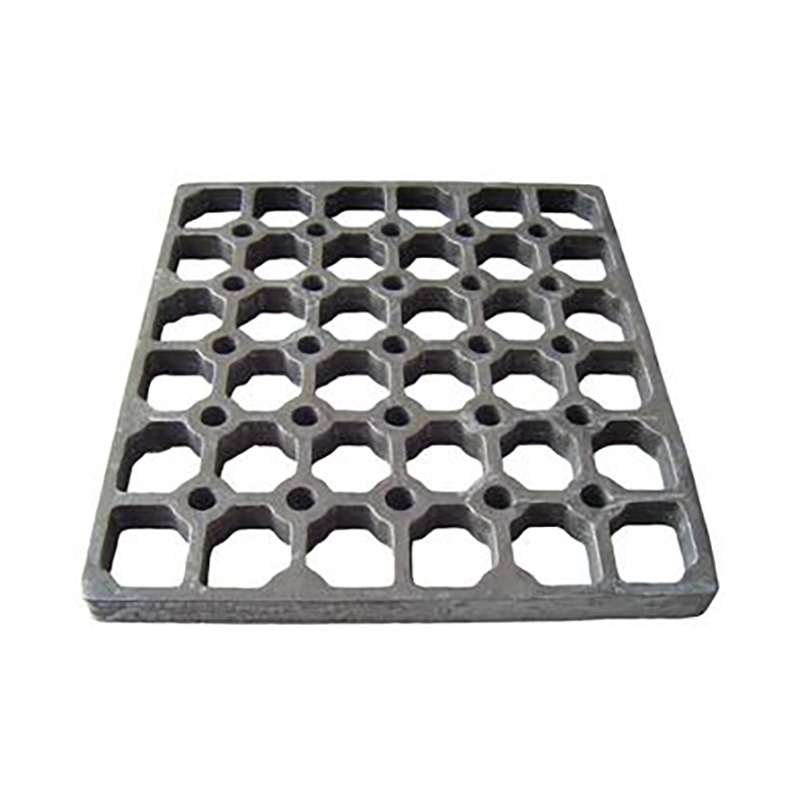

For example, for furnace bottom plates with high-frequency loading and unloading, materials with good thermal fatigue resistance and reinforced structural design should be used; while conveyor rollers used in continuous furnaces must take into account both wear resistance and dimensional stability. In addition, heat exchange components such as radiant tubes must also meet the requirements of heating uniformity and thermal efficiency, and the structural shape is closely related to airflow guidance. Reasonable design of structural parameters is the basis for extending the service life of accessories and maintaining heat treatment consistency.
Heat treating furnace parts (heat treating furnace parts) are often manufactured using different methods such as investment casting, EPC lost foam casting, and resin sand molding casting. The choice of casting method should be matched according to the complexity of the accessory structure, batch size and performance requirements.
Investment casting (precision casting) is suitable for parts with fine structure and high surface finish requirements, such as small and complex structural parts such as gas nozzles and thermocouple protection tubes. Its high dimensional accuracy helps to improve assembly efficiency and process consistency.
Lost foam casting is suitable for the production of medium and large furnace accessories with complex structures and large shape freedom, such as radiation tubes, hangers, furnace door components, etc. This process reduces the design restrictions of the mold parting surface, can form hollow structures or special-shaped parts in one go, and is conducive to reducing post-processing procedures.
Resin sand casting is suitable for large furnace body accessories with thick walls, simple structures, and high mechanical requirements, such as bases and pallets. By reasonably selecting the process path, the deformation and shrinkage of the casting can be controlled while meeting the strength requirements.
Heat treatment furnaces often operate in complex working conditions, such as high-temperature oxidation, high-temperature carbon potential, humid cooling, atmosphere furnaces and other environments. Different environments have different effects on the surface corrosion of accessories.
For the muffle tank or heating jacket in the atmosphere furnace, the environment in which it is located is mostly a closed state of reduction or high carbon potential, and carburizing-resistant alloy materials such as HK40, HT, HU and other high-chromium and high-nickel alloys are required to improve their crack resistance and carbonization resistance.
In places with hot and humid or acidic volatile environments, such as some chemical annealing furnaces and annealing water tank areas, it is recommended to use alloy materials with a high proportion of silicon, chromium and aluminum to improve corrosion resistance and reduce the risk of peeling and performance degradation caused by chemical corrosion.
The operating life of heat treating furnace parts is not only determined by materials and processes, but also related to the equipment operation rhythm, process frequency and maintenance methods. For example:
* Continuously running radiant tubes: Long-term high-temperature operation is prone to creep deformation, and the temperature distribution and material expansion state need to be monitored regularly.
* High-frequency loading and unloading furnace bottom plate: Frequent thermal shock leads to thermal fatigue cracks, and cooling control and crack observation links need to be added to daily maintenance.
* Fan impeller: Affected by high-speed airflow and heat load, it is necessary to regularly clean the oxide scale and carbon deposits to prevent vibration damage caused by imbalance.
Reasonable setting of maintenance cycles and remaining life assessment are effective strategies to improve the economic use cycle of accessories.
Although standardized accessories can reduce costs, they sometimes cannot achieve the best balance between thermal efficiency and life for specific process paths, special furnace types or customized workpieces. Customized accessories have obvious adaptation advantages in structural optimization, material adjustment, and matching process paths.
For example, the bracket system configured for multi-variety small-batch heat treatment production can improve clamping efficiency through modular combination and reduce heat treatment deviation caused by shape mismatch. The hangers used for some large hoisting workpieces can also optimize the layout of the lifting ears and stress distribution through finite element structural analysis to avoid bending deformation during operation.
Dongmingguan Special Metal Manufacturing Co., Ltd. has strong customization capabilities in this regard. Combining precision casting, centrifugal casting and EPC production processes, it can realize directional design and production according to customer needs and improve the process adaptability of the overall matching.
With the development of domestic heat treatment, metallurgy and petrochemical industries, the demand for high-performance furnace accessories is increasing. For quite a long time in the past, some high-end parts relied on imports, but now, more and more companies like Dongmingguan are gradually realizing domestic substitution through technology accumulation and production process improvement.
The improvement of technical maturity in casting accuracy, alloy control, heat treatment process and other links enables local manufacturers to provide more stable and adaptable product solutions. This also provides strong support for the overall maintenance cost control and rapid response of heat treatment equipment.
In most heat treating furnaces, heat treating furnace parts need to withstand long-term or even continuous high-temperature operation, and the temperature is often between 800℃ and 1200℃. At this time, the high-temperature strength, creep resistance and thermal expansion characteristics of the material become the core indicators of material selection.
*Applicable materials: heat-resistant steel represented by Fe-Cr-Ni alloy (such as HK40, HU, HT, HP series), with good high-temperature oxidation resistance and stable organizational structure.
*Applied parts: furnace bottom plate, radiation tube, muffle tank, hanger and other parts exposed to the high temperature zone of the furnace for a long time.
*Key performance requirements: stable thermal expansion coefficient to avoid thermal cracks, high yield strength to prevent structural deformation, and creep resistance to support long-term high-temperature loads.
In heat treatment equipment such as atmospheric pressure air furnaces and resistance furnaces, oxygen and high temperature work together to form oxide scale on the metal surface. Repeated oxidation and peeling will cause changes in structural dimensions and even cause component fractures.
*Applicable materials: high chromium alloys (such as Cr content above 20%), chromium can quickly form a Cr₂O₃ protective layer at high temperature, reducing the further oxidation rate.
*Applicable parts: sheath tubes, burner shells, fire baffles and other parts exposed to the air atmosphere in the furnace.
*Material selection suggestions: select alloys with a chromium content of not less than 25% and a moderate nickel content to take into account both anti-oxidation and thermal strength properties.
In carburizing furnaces and atmosphere furnaces, the atmosphere is rich in carbon sources (such as CO, CH₄, etc.), which can easily cause carburization reaction on the surface of heat treating furnace parts at high temperatures, resulting in the formation of hard and brittle phases, causing cracking, peeling and other damage.
*Applicable materials: alloy materials with high aluminum or silicon content, such as HP-MA (Modified Alloy), high silicon alloys, etc. Aluminum and silicon can form stable oxides to block the penetration of carbon atoms.
*Applicable parts: muffle tanks, radiation tubes, heat shields, fan impellers and other parts that are in carburizing atmosphere for a long time.
*Protection method: Combine ceramic coating or composite coating process to improve carbonization resistance; avoid sharp corners and uneven thickness in the design to reduce thermal stress accumulation.
Some heat treatment furnaces used in petrochemical, smelting and other industries may contain corrosive media such as SO₂, H₂S, or acidic flue gas condensate in their atmosphere, which can easily cause stress corrosion or intergranular corrosion to the metal.
*Applicable materials: nickel-based alloys (such as Inconel 600, 601, 625) or molybdenum-containing alloy steels, which have better stability in sulfurized environments.
*Applicable parts: roasting furnace outlet guide pipes, air ducts, atmosphere exchange tubes and other parts that come into contact with sulfur or acid gases.
*Design suggestions: Avoid high levels of iron or impurity elements in the material, while ensuring the quality of the material surface treatment and reducing the starting point of corrosion.
Periodic heating and cooling is a common operating rhythm of heat treatment furnaces, especially in intermittent furnaces that process workpieces in batches. This frequent thermal cycle can cause thermal fatigue, cracks, structural deformation and even fracture.
* Applicable materials: Casting alloys with strong thermal fatigue resistance, such as heat-resistant steel HT and HP series, especially materials with fine structure and few casting defects.
* Applicable parts: Furnace door supports, hangers, furnace wheel seats, lifting system brackets and other parts that are frequently impacted by alternating heat and cold.
* Material selection strategy: In addition to the material itself, the quality of the casting process is also extremely important. For example, the use of investment casting or lost foam casting processes can reduce defects such as sand holes, pores, shrinkage holes, etc., which helps to improve the fatigue life of components.
In addition to high temperature resistance, the components in the heat treatment furnace fan system must also withstand the combined effects of high-speed rotation, airflow impact and sudden temperature changes.
* Applicable materials: High-strength chromium-nickel alloys or nickel-chromium-molybdenum materials that maintain high mechanical strength and corrosion resistance at high temperatures.
* Applicable parts: circulating fan impellers, guide covers, air duct connections, etc.
*Reinforcement suggestions: Cooperate with mechanical dynamic balance design, strengthen casting density control and necessary post-heat treatment (such as solution treatment) to stabilize the microstructure and improve thermal shock tolerance.
Some heat treating furnace parts need to be regularly contacted with cooling water, oil or gas, such as furnace rollers, cooling pipes and other parts. Drastic changes in temperature will accelerate the accumulation of thermal stress. At the same time, impurities in the cooling medium will also corrode the surface of the material.
*Applicable materials: Austenitic stainless steel such as 304, 316L, or high chromium-molybdenum alloy steel, which has good crack resistance and corrosion resistance within a certain temperature range.
*Applied parts: cooling chamber inlet tray, transfer mechanism parts after heat treatment, guide structure in forced air cooling equipment, etc.
*Other suggestions: Wear-resistant surface treatment technology (such as surface spraying, hardening treatment) can be combined to slow down the wear rate and improve overall durability.
In addition to environmental factors, the manufacturing process of heat treating furnace parts is also an important factor affecting material selection. For example, centrifugal casting is suitable for high-strength thick-walled parts, while investment casting is suitable for small parts with complex details. Matching materials and processes can improve casting quality and reliability.
* Investment casting: Suitable for small parts with complex details, such as nozzles and sheaths, and applicable materials include heat-resistant stainless steel (such as CF8M).
* EPC lost foam casting: Suitable for medium and large complex structural parts, such as fans and radiation tubes, suitable for high chromium-nickel alloys.
* Resin sand casting: Used for heavy parts or simple structural parts, such as furnace bottom plates and hangers, HT or HP series alloys are often used.
When selecting materials, not only environmental requirements should be referred to, but also process adaptability should be considered to reduce the defect rate in the manufacturing process.
When selecting heat treating furnace parts materials, if the casting process capabilities and after-sales service experience of local suppliers can be combined, it will be more conducive to achieving long-term matching between materials and application environments.
For example, Wuxi Dongmingguan Special Metal Manufacturing Co., Ltd. has multiple casting capabilities such as investment casting, EPC lost foam casting, and resin sand casting, and can customize material formulations and structural designs based on customer environmental characteristics. This integrated model of materials, design, casting, and services helps shorten the adaptation cycle and improve usage efficiency.
 |
 |
Heat treatment furnace components are mostly in high temperature environments, and the physical, chemical and mechanical properties of different materials determine their service life and failure mode.
*Material strength and high temperature stability: If the selected material has a high creep rate or poor thermal fatigue performance at high temperature, it is easy to deform and crack in a short time, causing component failure, affecting the temperature uniformity in the furnace and the quality of workpiece processing.
*Corrosion resistance and oxidation resistance: If there is an oxidizing or carbon-nitrogen permeable atmosphere in the furnace, the material's resistance to chemical corrosion is directly related to the surface stability and life of the component. Corrosion phenomena such as carbonization, oxidation, and sulfidation will accelerate material aging.
Appropriately improving alloy design, such as adding elements such as aluminum, chromium, nickel, and molybdenum, to improve the metal's corrosion resistance and thermal deformation resistance will help extend the life of the component.
Whether the structural design of heat treating furnace parts is reasonable determines the performance of multiple systems such as heat distribution, airflow path, and load-bearing status in the furnace.
*Heat conduction and atmosphere circulation efficiency: For example, if the muffle tank, radiation tube, heat shield and other structures are reasonably designed, they can transfer heat evenly, avoid local overheating, improve thermal efficiency and reduce fuel or electricity consumption.
*Furnace car, tray, and hanger structure: They should have sufficient strength and light weight to reduce thermal inertia, increase heating rate, and reduce cooling time, thereby improving the entire heat treatment cycle.
If modular ideas or partially replaceable structures are adopted in the design, it can also improve maintenance convenience and operation continuity.
The manufacturing process of heat treating furnace parts, such as casting, heat treatment, and welding, is the key step to determine its actual service performance.
*Casting defects affect structural integrity: Casting defects such as pores, shrinkage, slag inclusions, and cracks may become stress concentration points during use, causing early fracture of parts under high temperature or load.
*Heat treatment state affects organizational properties: Improper heat treatment process may cause coarse grains and brittle organization of materials, reducing their thermal shock resistance.
Selecting appropriate manufacturing processes (such as investment casting, resin sand molding, centrifugal casting, etc.) and strengthening quality control are the basis for ensuring the reliability of component operation.
In heat treatment plants, maintenance frequency and component replacement convenience directly affect the stability of equipment operation and the continuity of production lines.
* Component fragility affects maintenance frequency: If the design of accessories is unreasonable or the material selection is inappropriate, frequent maintenance or even whole furnace shutdown may occur, affecting batch production efficiency.
* Replaceable structure design: The use of plug-in or combined structure makes the replacement cycle of some vulnerable parts shorter and the operation more convenient, which can reduce the maintenance cost and manual intervention time of the whole furnace.
Extending the maintenance cycle of components and reducing the risk of emergency shutdown are conducive to improving the overall start-up rate of equipment.
The thermal conductivity and thermal inertia characteristics of some heat treating furnace parts will affect the thermal efficiency and energy usage of the furnace body.
*Heavy parts heat up slowly: If the bottom plate, insulation layer bracket, etc. are designed too thick, it will increase the heating time of the furnace and cause energy waste.
*High thermal conductivity parts optimize the heat transfer path: For example, the thermal conductivity of the materials of components such as radiation tubes and air ducts is high and the thermal conductivity design is reasonable, which helps to improve the thermal utilization efficiency.
Through material optimization, structural weight reduction and surface treatment, the thermal response speed of the furnace can be improved without sacrificing strength, thereby reducing energy consumption.
After long-term high-temperature operation, the furnace body may deform, bend, dislocate, etc., thereby destroying the integrity of the structure and causing abnormal operation.
*Control of the deformation of the furnace bottom plate and the furnace frame: If these parts warp due to uneven thermal expansion, it will affect the flatness and safety of the workpiece loading.
*Load-bearing stability of the sling and pallet: Severe thermal deformation will cause the workpiece to fall or collide, increasing safety risks and equipment losses.
Selecting a material combination with low thermal expansion rate and strong structural rigidity, and making reasonable support design, can effectively delay the occurrence of equipment instability.
After hundreds of temperature cycles, heat treating furnace parts are prone to thermal fatigue cracks or even fractures, which become the root cause of unplanned equipment downtime.
*Chain reactions caused by component fractures: such as bracket cracking, fan impeller imbalance, radiation tube rupture, etc., which not only affect the stability of temperature control, but also may endanger the quality of workpieces and personal safety.
*Anti-fatigue design strategy: In parts where thermal stress changes frequently, materials with strong thermal fatigue resistance should be selected, and stress concentration parts such as sharp corners and mutations should be avoided as much as possible.
Strengthening the fatigue life assessment of components is an effective means to extend the equipment overhaul cycle and improve system reliability.
For different types of heat treatment furnace atmospheres (such as protective gas, carburizing gas, ammonia decomposition gas, etc.), the material selection of heat treating furnace parts must have good atmosphere adaptability.
*Material failure caused by atmosphere mismatch: Improperly selected materials may fail due to carbonization, denickelization, oxidation, and even contaminate heat-treated workpieces.
*The importance of coupling materials and processes: For example, chromium-rich nickel alloys are suitable for oxidizing atmospheres, and silicon-aluminum alloys are suitable for carburizing furnace environments with high carbon potential.
Material and process design needs to consider atmosphere adaptation requirements from the source to ensure process stability and product consistency.
The impact of cost and life balance on equipment investment return rate
In the selection of equipment accessories, only considering the initial purchase cost may lead to frequent replacement and high maintenance costs, which is not conducive to operating cost control in the long run.
* Cost-effective strategy: Selecting mid-to-high-end materials and mature casting processes within a reasonable price range can often achieve a longer service life and a lower annual replacement frequency.
* Full life cycle management thinking: Starting from the entire process of design-manufacturing-operation-maintenance, a component life cycle model should be constructed to maximize the value of equipment investment.
In large-scale heat treatment production lines, optimizing the investment return ratio of heat treating furnace parts life and performance will help improve overall operational efficiency.
The heat treatment equipment in the metallurgical industry is mainly used for annealing, normalizing and quenching of materials such as steel, alloy ingots and forgings. The heat treatment environment has high temperature, long time and complex media.
*Material requirements: It must have high temperature strength and creep resistance, and high chromium-nickel alloy, austenitic stainless steel and other materials are often used.
*Corrosive environment: Some furnace bodies use sulfur-containing or chlorine-containing atmospheres, requiring accessories to have strong corrosion resistance to prevent oxidation peeling and surface cracking.
*Structural focus: Focus on the structural strength and deformation control of furnace tanks, muffle tanks, radiation tubes and load-bearing brackets to ensure uniform heating of workpieces in the furnace.
The industry has high expectations for the operating life and maintenance intervals of accessories, and usually prefers large high-temperature components cast by centrifugal casting or resin sand casting.
The heat treatment in the automotive industry is mostly used for surface strengthening and organizational optimization of mechanical parts such as gears, shafts, connecting rods, crankshafts, etc. The production batch is large, and the processing beat and product consistency requirements are high.
* Thermal efficiency focus: Accessories need to help improve the heat exchange efficiency in the furnace, shorten the heating and insulation time, and improve the overall beat.
* Lightweight structure: Commonly used pallets, hangers, frames and other components should take into account both strength and lightness, reduce thermal inertia, and facilitate automated loading and recycling.
* Atmosphere adaptability: Heat treatment processes such as carburizing and carbonitriding need to be operated in a controlled atmosphere, requiring components to have strong adaptability to the atmosphere and not prone to carburizing layer deformation.
The automotive industry usually prefers modular and highly standardized component configurations to meet the needs of assembly line operation and rapid replacement.
The petrochemical industry widely uses heat treatment furnaces in high-temperature process links such as catalysis, cracking, and regeneration. The working conditions are complex and the atmosphere is changeable, which poses special challenges to heat treating furnace parts.
* Complex corrosion environment: Furnaces are often accompanied by corrosive substances such as hydrogen sulfide, chlorine, and water vapor. Components need to have strong corrosion resistance and metal powder resistance.
* Frequent thermal cycles: In continuous and intermittent operations, high temperature and cooling are frequently alternated, requiring components to have strong resistance to thermal fatigue and thermal shock.
* Material selection: Use high-alloy heat-resistant steel (such as HK40, HP Nb-modified series) to improve structural stability and extend life cycle.
Such industries pay more attention to the stability of material composition and consistency of service life of accessories to reduce unplanned downtime.
Heat treatment in the aerospace field is mostly aimed at high-strength titanium alloys, nickel-based alloys and other materials. The process control is precise and the technical indicators of equipment and accessories are strict.
* Temperature control consistency: Heat treating furnace parts needs to ensure uniform distribution of thermal fields in various areas of the furnace to avoid material performance deviations due to uneven local heating.
* Pollution control: Some processes are carried out in vacuum or high-purity inert atmosphere, and strict standards are set for the degassing rate, oxygen content, and surface residual element control of accessories.
* Deformation control: Trays and hangers need to maintain geometric stability for a long time to ensure that the workpiece maintains shape and position accuracy during heat treatment.
The aerospace industry prefers high-precision customization, vacuum compatibility and long-term stability of accessories development solutions.
The hardware industry involves a large number of various types of tools, molds, fasteners, etc., and the heat treatment requirements are relatively standardized, but the focus is on economy and ease of operation.
* Structural standardization: Accessory design is often based on universal hangers, mesh belts, and rollers to improve furnace loading efficiency.
* Maintenance cost control: The heat treatment cycle is short and the equipment is frequently operated, requiring accessories to have the characteristics of quick replacement and low-cost maintenance.
* Wear resistance requirements: The workpiece support parts (such as mesh belts and trays) must have wear resistance and impact resistance to adapt to frequent loading and unloading.
The industry often combines actual production lines for simplified design to find a balance between performance and cost.
In the fields of nuclear power, thermal power, wind power, etc., heat treating furnace parts are often used for preheating and tempering of large structural parts and high-stress parts.
*Large-size workpiece support: Accessories need to have high load-bearing capacity and structural stability to cope with high-temperature treatment of large flanges, rotors, and shafts.
*Long-term stable operation: Most heat treatment cycles are long and temperature changes are slow, but higher requirements are placed on long-term stability.
*Safety and standardization: Such industries need to meet higher safety factors and standard specifications, such as ISO or specific requirements of the nuclear industry.
Component design mostly uses thick-walled high-strength alloy castings, and improves overall stability through centrifugal casting, integral molding, etc.
The rail transportation field involves high-frequency heat treatment of components such as wheels, gauge parts, and brake systems, which places high requirements on the accuracy of heat treatment quality control.
*Symmetrical heating requirements: Workpieces are mostly axisymmetric structures, and heat treating furnace parts should be able to cooperate with the furnace rotation or partition heating system to ensure symmetry.
*Fatigue life control: Long-term service parts need to improve fatigue strength through heat treatment, and the accessory structure needs to be stable and not easy to deform to avoid adverse stress during the treatment process.
* Tool wear suppression: Components such as hoists and turntables are required to have good wear resistance and fatigue tolerance under high-cycle use.
The rail transit industry is particularly sensitive to process reproducibility and quality stability, and often introduces digital simulation and thermal field simulation to verify the performance of accessories.
 |
 |
The first thing heat treating furnace parts face is continuous high temperature or periodic high and low temperature changes. Good heat resistance is one of the basic properties.
*High temperature strength: The parts still need to maintain a certain structural strength under high temperature conditions to prevent deformation, collapse or creep. High nickel and high chromium alloys such as HK, HT, and HP series heat-resistant steels are commonly used.
*Oxidation resistance: High temperature oxidation causes surface scaling, peeling and even structural damage. The material must have surface density and stability of the oxidation resistance film, such as austenitic stainless steel with a high Cr content.
*Thermal fatigue ability: Repeated heating and cooling cause the material to expand and contract, forming cracks or fractures. Materials with good thermal expansion coefficient matching and stable grain structure must be selected.
When selecting materials, targeted matching should also be carried out in combination with the furnace type (gas, vacuum, salt bath, etc.) and the process temperature (700~1200°C).
Some heat treating furnace parts will be subjected to wear mechanisms such as friction, impact, and rolling during operation, especially during continuous loading, transportation or flipping.
*Typical parts: such as trays, material baskets, conveyor rails, rollers, hanging devices, etc., are susceptible to mechanical wear and impact damage.
*Material countermeasures: High-hardness steels with alloy elements such as Mo, V, and Nb are often used to improve wear resistance; or surface surfacing, thermal spraying, carburizing, etc. are performed on the surface to enhance the surface hardness.
*Wear form: including adhesive wear, oxidative wear and particle wear. The material must have good crack resistance and deformation recovery ability to prevent fatigue peeling.
Wear resistance design should also consider the structural strength of the accessories to avoid overall embrittlement while increasing hardness.
Specific atmospheres are often used in heat treatment furnaces, such as controlled atmospheres, ammonia decomposition gas, nitrates, carbon-nitrogen mixed gases, etc. These environments form complex corrosion effects on accessories.
*Influence of atmosphere type: Carburizing atmospheres with higher carbon potential are prone to carbon corrosion; chlorine or sulfide atmospheres are prone to pitting, stress corrosion and intergranular corrosion.
*Material response strategy: Commonly used corrosion-resistant materials include high Cr/Ni alloys (such as IN-800, IN-600), duplex stainless steel, and Si-containing corrosion-resistant cast iron.
*Process adaptation: For example, avoid using ordinary stainless steel in carburizing treatment environments because carbon diffusion at high temperatures may cause structural embrittlement.
The stability of corrosion-resistant materials depends on their surface film structure and alloy composition. The specific heat treatment medium and its volatile products should be evaluated before material selection.
In actual use, heat treating furnace parts are not only subjected to a single effect, but are usually subject to corrosion, wear and load pressure at high temperatures.
*High temperature + corrosion environment: For example, when muffle tanks and radiation tubes are operated in a closed atmosphere furnace, the materials need to take into account both high temperature oxidation and carburizing corrosion. It is more reliable to choose HK40 or HP Modified series.
*High temperature + wear environment: For example, the chain rails of chain conveyor furnaces are subjected to mechanical wear and are exposed to high temperatures. High-hardness austenitic steel or surface hardening treatment is often used.
*Intermittent use conditions: When the equipment is frequently started and stopped, the components need to withstand severe thermal expansion and contraction and alternating hot and cold. Alloy materials with small thermal expansion coefficient and strong thermal stability should be selected.
When designing, the combined material scheme should be considered. By using high-performance alloys for core components and more cost-effective materials for non-critical components, comprehensive cost control can be achieved.
According to different industries and working conditions, the commonly used material types for heat treating furnace parts are as follows:
* Cast heat-resistant steel (HK, HT, HP series): suitable for high-temperature furnace bodies, radiation tubes, trays, muffle tanks, etc., with balanced comprehensive performance.
* High chromium-nickel alloys (such as IN-800H, 600 series): suitable for vacuum furnaces or carburizing environments, with strong oxidation resistance and corrosion resistance.
* Austenitic stainless steel (310S, 304H, etc.): widely used in temperature-controlled furnaces, hangers, etc., taking into account both strength and formability.
* Ceramics and composite materials: used in high insulation and high heat resistance occasions (such as high-temperature electric furnaces, induction heating equipment).
Different materials should be used in reasonable combinations according to the location of use, structural stress and operating frequency to reduce the failure rate and maintenance frequency.
The production process of heat treating furnace parts will affect its material performance, and the manufacturing method should be matched according to the purpose:
* Centrifugal casting: suitable for radiation tubes and cylindrical parts, with dense structure, high strength and good thermal cracking resistance.
* Precision casting (investment casting/EPC): suitable for small parts with complex structures, high dimensional accuracy and wide range of material selection.
* Resin sand casting: suitable for large special-shaped structural parts, can be used to customize muffle tanks, furnace doors, structural brackets and other parts.
In addition, the stability of alloy structure and oxidation resistance can be further improved through post-heat treatment (such as solid solution and aging treatment).
On the premise of meeting basic performance, material selection should also consider life cycle cost and procurement and maintenance economy:
* Balance between initial investment and replacement cycle: Although high-end alloy materials are more expensive, they have a longer service life, which can reduce replacement frequency and labor costs.
*Maintenance convenience: Some parts can be designed with detachable structures and conventional stainless steel to facilitate partial replacement and welding repair in the future.
*Multi-layer composite solution: Corrosion-resistant layer or cladding layer is used in key parts, and the substrate is made of more cost-effective materials, taking into account both performance and economy.
Manufacturers and users should comprehensively evaluate material selection strategies based on actual use conditions, budget constraints and maintenance resources.
The material selection of heat treating furnace parts is a systematic project, which requires comprehensive consideration of factors such as heat treatment temperature, operating frequency, workpiece type, and atmosphere environment. Through reasonable material configuration and manufacturing process selection, the service life of accessories can be effectively extended, maintenance downtime can be reduced, and the operation stability of equipment can be improved.
With the continuous development of new high-temperature alloys and composite functional materials, as well as the widespread application of numerical simulation and thermal field analysis technologies, the material selection of heat treating furnace parts is gradually developing towards intelligence and customization. Material selection is no longer a single benchmark, but should become an important link in the coordinated optimization of equipment technology, production rhythm, and operating cost. If there are specific equipment types (such as mesh belt furnace, pit furnace, walking beam furnace) or material requirements (such as high nitrogen steel, rare earth alloys) that need to be discussed in depth, further targeted expansion can also be carried out.
Heat treating furnace parts usually include trays, hangers, muffles, radiation tubes, baskets, rails, furnace doors, etc. These parts operate for a long time in high-temperature atmospheres, and are not only subject to the influence of temperature, load, and thermal cycle changes, but also face multiple challenges such as corrosion, wear and deformation.
* Stress accumulation in high-temperature environments: When operating in the high-temperature zone of 900°C~1200°C, the component materials must have good thermal creep resistance and structural stability.
* Prominent atmospheric corrosion problems: The controlled atmosphere in the furnace, ammonia decomposition gas, nitride gas or nitrate bath will cause carbon corrosion, sulfur corrosion or stress corrosion on the surface of the accessories.
* Thermal fatigue and deformation risks: The heat treatment equipment frequently expands and contracts during the start-up and shutdown process, which accelerates the fatigue of the metal structure and reduces the structural life.
* Process interference: Once the accessories fail or deform, it will directly affect the placement of the workpiece, the transmission rhythm and the atmosphere circulation, thereby causing process fluctuations.
It can be seen that the stability of heat treating furnace parts is not only a mechanical structure problem, but also directly related to process safety and production rhythm.
Material selection is the first step for the stable operation of heat treating furnace parts. Different furnace types and process conditions have different requirements for material performance.
*Heat-resistant steel series: such as HK40, HP-Nb, and HT series, which are often used for trays, hangers, and track parts with high structural strength requirements, and have strong high temperature strength and oxidation resistance.
*High nickel and high chromium alloys: such as IN-800 and 600 series, have more stable corrosion resistance and carburization resistance in vacuum furnaces, high carbon or sulfidation environments.
*Ceramics and composite materials: used for insulating parts or induction heating elements, with characteristics such as electrical insulation and high temperature stability.
*Surface treatment materials: such as surfacing alloys, surface aluminizing or spraying ceramic coatings, can be used to enhance the local wear resistance or corrosion resistance of parts.
Reasonable material matching should be optimized based on parameters such as furnace type, temperature range, process atmosphere, and charge weight.
The structural design of heat treating furnace parts directly determines its stable performance in high temperature environments.
*Matching of structural thickness and deformation: Reasonable wall thickness design can improve bearing capacity and reduce the probability of thermal deformation; too thin wall thickness is easy to burn through, and too thick wall thickness is easy to cause thermal stress concentration.
*Reasonable design of fluid channels: For example, the gas circulation path in the radiation tube and the atmosphere circulation space inside the furnace should avoid dead corners and overheating areas to reduce local damage.
*Modular design concept: By designing heat treatment furnace accessories as replaceable modules, the overall maintenance cost is reduced and the ability to recover quickly after failure is improved.
*Coordination of thermal expansion coefficient: Thermal expansion mismatch should be avoided between different components, and reasonable gaps and connection methods have a positive effect on controlling thermal expansion and contraction stress.
Scientific structural design further enhances the failure resistance of heat treating furnace parts based on material selection.
During actual operation, heat treating furnace parts will suffer from different forms of damage, which need to be identified and prevented in advance:
*Thermal fatigue cracking: Due to repeated changes in hot and cold cycles, small cracks are prone to occur at stress concentration points (such as corners, welds, and connection points), which gradually expand into fractures.
* Creep deformation: When components operate under high temperature stress for a long time, irreversible plastic deformation occurs, such as tray sinking, hanger bending, support column tilting, etc.
* Corrosion perforation: In sulfur, carbon or chlorinated atmospheres, some alloys are prone to intergranular corrosion or pitting, resulting in local strength loss or pitting corrosion.
* Surface peeling or wear: The surface of components peels off or oxidizes during high temperature friction, affecting the structural load-bearing and surface integrity.
Classification and management of these typical problems is the basis for formulating maintenance strategies.
Reasonable maintenance not only extends the life of accessories, but also can detect hidden dangers in advance and avoid sudden shutdown accidents.
* Regular inspection and record keeping: It is recommended to visually inspect and compare the dimensions of major accessories such as material baskets, trays, radiation tubes, muffle tanks, etc. on a quarterly or semi-annual basis, and record signs of deformation, cracks, etc.
* Surface cleaning and descaling: For long-term operating parts, oxide skin cleaning, surface sandblasting or coating repair can be performed to reduce the rate of oxidation accumulation.
* Thermal fatigue pretreatment: Before use, thermal stress can be "tamed" by slowly heating up and cooling at a controlled rate to delay the formation of initial cracks.
* Local repair and remanufacturing: For parts with initial cracks or slight deformation, local welding, correction or heat treatment regeneration can be used for reuse.
* Replacement cycle management: It is recommended to set a replacement cycle for core parts that are frequently used and bear high loads, and purchase spare parts in advance to avoid sudden downtime.
Putting "maintenance" work in the planning stage in advance will help build a complete guarantee system for stable operation of equipment.
Combined with the actual application scenarios of various industries, the following are several typical practical experiences:
* Petrochemical industry: High-temperature cracking furnace accessories are exposed to hydrocarbon atmosphere for a long time. High Cr/Ni alloy pipes are selected, combined with periodic decarburization cleaning and stress annealing treatment.
* Automotive heat treatment line: The wear and deformation problems of trays and hangers in stepping furnaces are prominent. The service life is extended by optimizing the thickness, structural rib layout and using wear-resistant alloys.
* Powder metallurgy industry: The internal components of vacuum furnaces are greatly affected by thermal shock, so low expansion and high strength alloy materials are used, and maintenance costs are controlled by module replacement.
* Aviation manufacturing field: Heat treatment of complex workpieces requires temperature uniformity in the furnace, low warpage structural parts are used, and a fine maintenance record management system is implemented.
These cases reflect the direct significance of reasonable selection and maintenance to improve equipment stability.
With the development of digital manufacturing, the management of heat treating furnace parts is also evolving in a smarter direction:
* Material traceability system construction: Record the material composition, production process and operation history of each batch of accessories through QR codes or RFID tags to achieve quality traceability.
* Operation data monitoring: Combine the heat treatment furnace temperature control system with the accessories status perception equipment to realize the temperature, stress, vibration and other data collection of key components.
* Life prediction and replacement suggestions: Use AI algorithms to analyze the operation history of accessories, predict possible failure nodes, and provide data support for operation and maintenance.
* Modular and standardized design: Improve replacement efficiency and reduce maintenance manpower dependence by formulating unified accessory interface standards.
This intelligent operation and maintenance mode will become an important direction for the management of heat treating furnace parts in the future.
The stability of heat treating furnace parts is related to the overall performance of the heat treatment system. From material selection, structural design to use management and intelligent maintenance, every link requires systematic thinking and coordinated optimization. Through scientific selection concepts and continuous maintenance systems, the stability of equipment operation can be significantly improved, the risk of shutdown can be reduced, and higher production efficiency and lower maintenance costs can be brought to enterprises.
The stable operation of heat treatment equipment is not achieved overnight, but the result of continuous optimization in practice and continuous improvement in management. Scientific management of heat treating furnace parts is the key force to promote the long-term stable operation of equipment.
PHONE: +86-13382893387
TEL: +86-510-85308522
FAX: +86-510-85308166
WHATSAPP: +86-15161506024
EMAIL: [email protected]
ADDRESS: No. 8, Jingfa 6th Road, Shuofang Industrial Concentration Zone, New District, Wuxi City
MOBILE
Copyright © Wuxi Dongmingguan Special Metal Manufacturing Co., Ltd. All Rights Reserved.
Wholesale Heat Resistant Steel Casting Factory
English
Español
عربى
