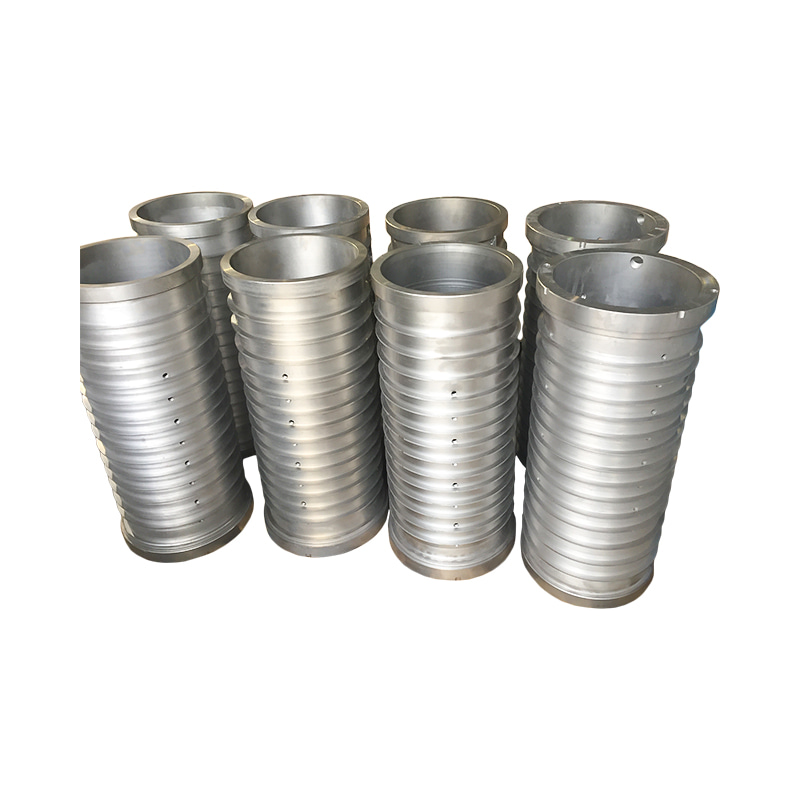

GX280 (KMTBCr26) wear-resistant inner cylinder

Detail drawing

PREV：GX280 (KMTBCr26) High-efficiency mining machinery casing
NEXT：440C high hardness grinding inner cylinder

Product parameters

Material

The GX280 (KMTBCr26) wear-resistant inner barrel is made of high-quality wear-resistant materials. After precision machining and quenching, the hardness can reach HRC>60, and it can operate stably in the high-load and strong impact working environment of mining machinery and powder grinding equipment. The design of the inner barrel takes into account the wear resistance required for long-term use, and can effectively cope with the wear and impact caused by ore and grinding materials.

The inner barrel adopts wear-resistant steel cast pipe technology to make its surface more solid and maintain stable performance under harsh working conditions. The application of wear-resistant steel cast pipes greatly improves the wear resistance of the inner barrel, so that it can still maintain a long service life in the face of extreme environments such as high temperature and high pressure, and reduces the frequency of replacement due to excessive wear.

Component	C	Si	Mn	P	S	Cr	Ni	Cu	Mo
Min	2	-	-	-	-	23	-	-	-
Max	3.3	1.2	2	0.1	0.06	30	2.5	2	3
