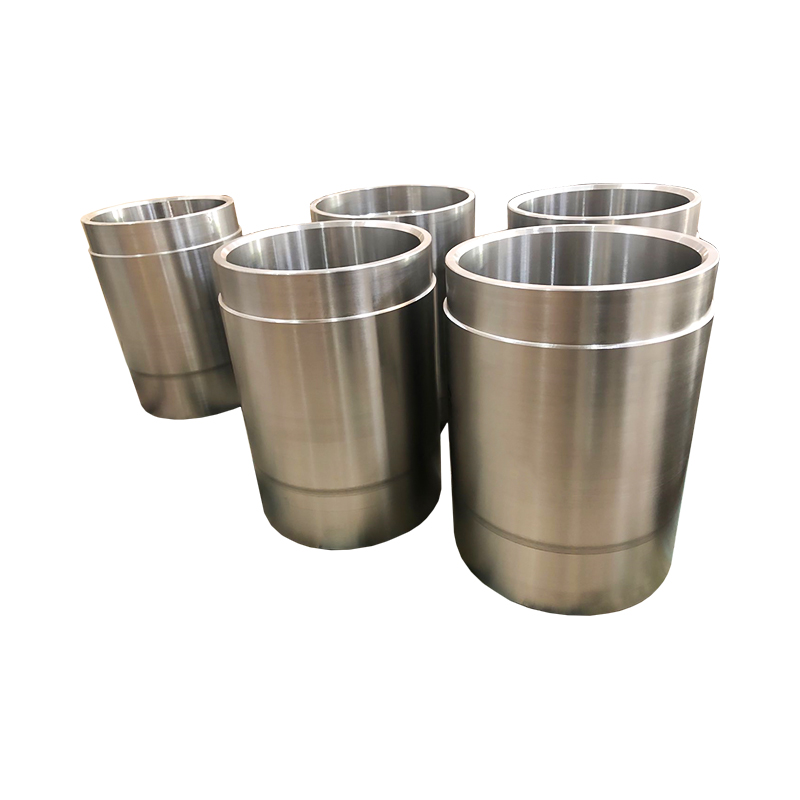

2205 (CD3MN) Stainless steel corrosion-resistant sleeves

  • 2205 (CD3MN) Stainless steel corrosion-resistant sleeves
  • 2205 (CD3MN) Stainless steel corrosion-resistant sleeves
Detail drawing
  • 2205 (CD3MN) Stainless steel corrosion-resistant sleeves
  • 2205 (CD3MN) Stainless steel corrosion-resistant sleeves
Contact Us
Wuxi Dongmingguan Special Metal Manufacturing Co., Ltd. Product parameters Wuxi Dongmingguan Special Metal Manufacturing Co., Ltd. Material

2205 (CD3MN) Stainless steel corrosion-resistant sleeves are highly corrosion-resistant products designed for water pump sleeves and impeller retaining sleeves. They are widely used in various working conditions that require corrosion resistance. Made of high-quality 2205 stainless steel cast pipes, this sleeve can effectively reduce the erosion of corrosive substances and extend the service life of the equipment when facing harsh environments such as strong acids and alkalis. 2205 (CD3MN) alloy has good resistance to pitting, chloride corrosion and stress corrosion, and is particularly suitable for use in pumping systems containing corrosive liquids.

Since the 2205 (CD3MN) sleeve is designed with full consideration of corrosion protection requirements, it can maintain stable performance in highly corrosive working environments. The sleeve has a sturdy structure and can withstand large mechanical stress. At the same time, its good wear resistance ensures the long-term stable operation of water pumps and other equipment.

Component

C

Si

Mn

P

S

Cr

Ni

Cu

Mo

N

Min

-

-

-

-

-

21

4.5

-

2.5

0.1

Max

0.03

1

1.5

0.04

0.02

23.5

6.5

1

3.5

0.3

About Us
Wuxi Dongmingguan Special Metal Manufacturing Co., Ltd.
Wuxi Dongmingguan Special Metal Manufacturing Co., Ltd. is located at the bank of the beautiful the Taihu Lake Lake, with beautiful scenery, pleasant climate and convenient transportation. It only relies on the Shanghai Nanjing High-speed Railway, Shanghai Nanjing Expressway, and the Shuofang Airport in southern Jiangsu, only two kilometers away, with an annual casting capacity of 5000 tons.
The company is China 2205 (CD3MN) Stainless steel corrosion-resistant sleeves Factory and Custom Centrifugal Casting 2205 (CD3MN) Stainless steel corrosion-resistant sleeves Suppliers. We specialize in producing heat-resistant/wear-resistant/corrosion-resistant castings and are an excellent supplier of supporting equipment for the heat treatment, petrochemical, and metallurgical industries in Jiangsu Province. The production processes include precision casting (investment casting/EPC lost foam production line), centrifugal casting, and resin sand molding casting.
Our typical product: garbage incinerator grate series, which has successfully replaced imported heat treatment fixtures in batches by absorbing and digesting foreign grates. We provide heat treatment fixtures, radiation tubes, furnace rollers for many well-known heat treatment equipment manufacturers (such as Epson, Aixie Lin, Fengdong) and export them to Europe, South America, Japan and other countries;
High alloy centrifugal cast pipe series: Our main products include radiation tubes, easy-cutting high sulfur centrifugal cast pipes, heating furnace bottom rollers, paper-making rollers, glass rollers, galvanized tank sinking rollers, high alloy cylinder liners, etc. We can produce a series of centrifugal cast pipes with diameters ranging from 50MM to 1000MM and lengths of 4000MM.
Our company is equipped with heat treatment furnaces and various types of machining equipment to meet customers' processing needs. Our quality control hardware is complete and advanced, including direct reading spectrometers, handheld spectrometers, crystal phase analyzers, 3D scanners, tensile machines, impact machines, Blowe hardness testers, ultrasonic flaw detectors, magnetic particle flaw detectors, and other advanced testing instruments to meet customers' various testing and inspection needs. Our quality control software is complete and advanced, using CAD and UG for drawing and design, ANYCASTING for casting simulation process, ABAQUS for stress simulation analysis, and GEOMAGIC CON with 3D scanner for size comparison between castings and digital models.
